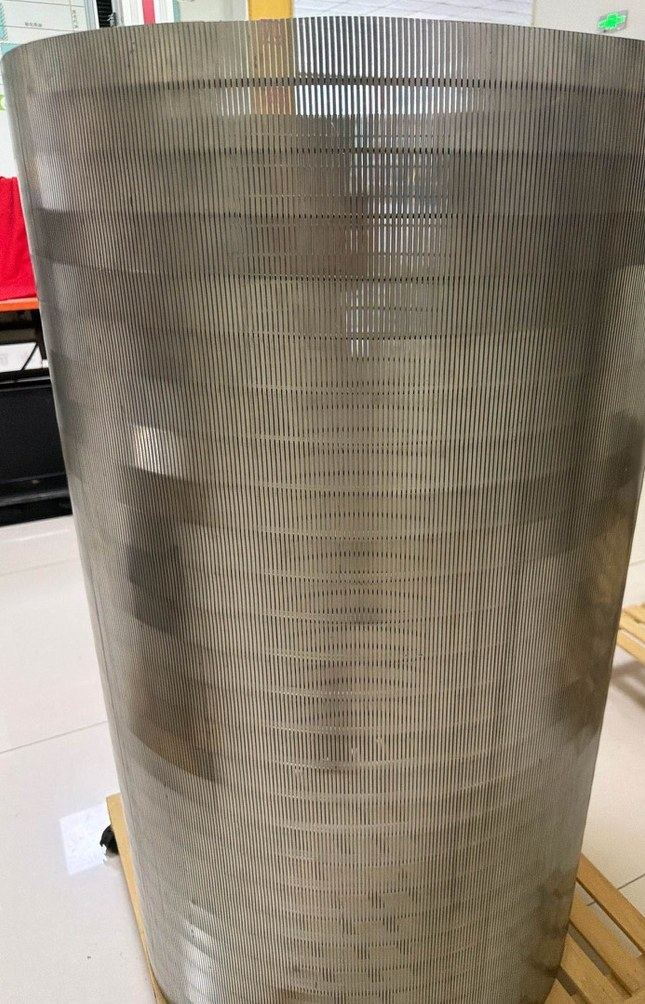

Wedge wire screen tubes are precision V-wire screen tubes, used as backwash and feed filter elements.
Tubes made of V-shaped wires with very precise slots. They work as a filter: liquid passes through, while solid particles stay outside.
Choose This Product When
- You need a backwash or feed filter element
- You need precise slots that do not clog easily
- You need a non-standard screen
Photos
Product Description
Wedge wire screens are made of V-shaped wire welded onto support rods, giving even slots that let liquid or gas through and hold back solids. Types include hydrogenation backwash filter elements, feed filter elements for fractionation towers, and custom designs.
The tubes are made to your slot size and dimensions.
How It Works
The flat side of the V-shaped wire faces the flow. The slot between two wires is narrowest at the surface and widens behind it, so a particle either stops at the surface or passes straight through – it cannot get stuck inside the slot. This makes the screen hard to block and easy to clean by backwashing.
Features
- Gap precision down to 0.005 mm
- Custom designs to order
Applications
- Hydrogenation backwash filters
- Fractionation tower feed filters
Often Used in These Industries
Types & Specifications
| Tube diameter | Length | Gap precision |
|---|---|---|
| 30–220 mm | up to 2,000 mm | 0.005 mm |
| 400–1,200 mm | up to 4,000 mm | 0.03 mm |
Frequently Asked Questions
What is a wedge wire screen?
A screen made of V-shaped wires welded onto support rods. The slots widen inwards, so particles do not get stuck and the screen is easy to backwash.
Can the slot size be chosen?
Yes – the tubes are made to order with the slot size and dimensions you need.
