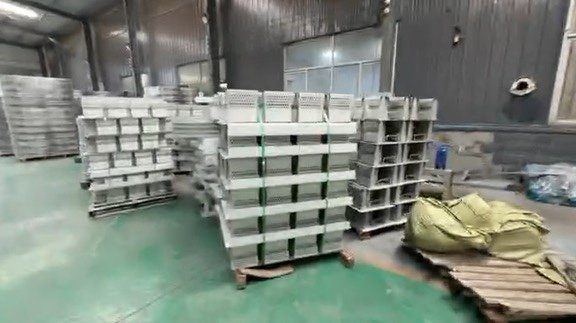

A hump-shaped support plate is a packing support plate for random packing. The hump shape gives the gas a large area to pass through, with openings that do not block.
A strong plate with hump-shaped beams at the bottom of a bed of random packing. It carries the packing and leaves plenty of open space for the gas.
Choose This Product When
- You need to support random packing
- You need a large gas passage area
Product Description
The hump support carries a bed of random packing. Its design increases the area for the gas to pass through, and the openings are not easily blocked by the packing.
How It Works
The plate is made of hump-shaped beams with openings in their sides. Gas enters the packing through these side openings, where the packing cannot block them, while liquid drains through the bottom. This gives a large open area and a low pressure drop.
Applications
- Packed columns with random packing
Often Used in These Industries
Features
- Large gas passage area
- Openings not easily blocked
Frequently Asked Questions
Why does the support plate have a hump shape?
Gas flows through openings on the sides of the humps, so the packing does not block them and the gas has a large area to pass through.
Which packing is it used with?
Random packing.
